Measuring Bend
An easy measuring method without increasing the pressure drop, air resistance or operating and installation costs
Used for both Process and Comfort
With a measuring bend makes it easily to measure regulation in a ventilation system or continuous control measurement of the air flow. It can be used for all types of ventilation systems both in connection with new construction and for renovation or energy optimisation of existing process or comfort plants.
The measuring bend is an energy-efficient measuring method that provides fixed measuring points in the ventilation system. The measuring bend does not increase the pressure drop, air resistance or operating and installation costs when it is placed where it is intended to mount a bend in the system.
Our measuring bend is a great low-cost alternative to the current measuring methods with remote output available on the market. These are challenged by adding extra pressure loss during installation as well as soiling over time, which increase the energy consumption.

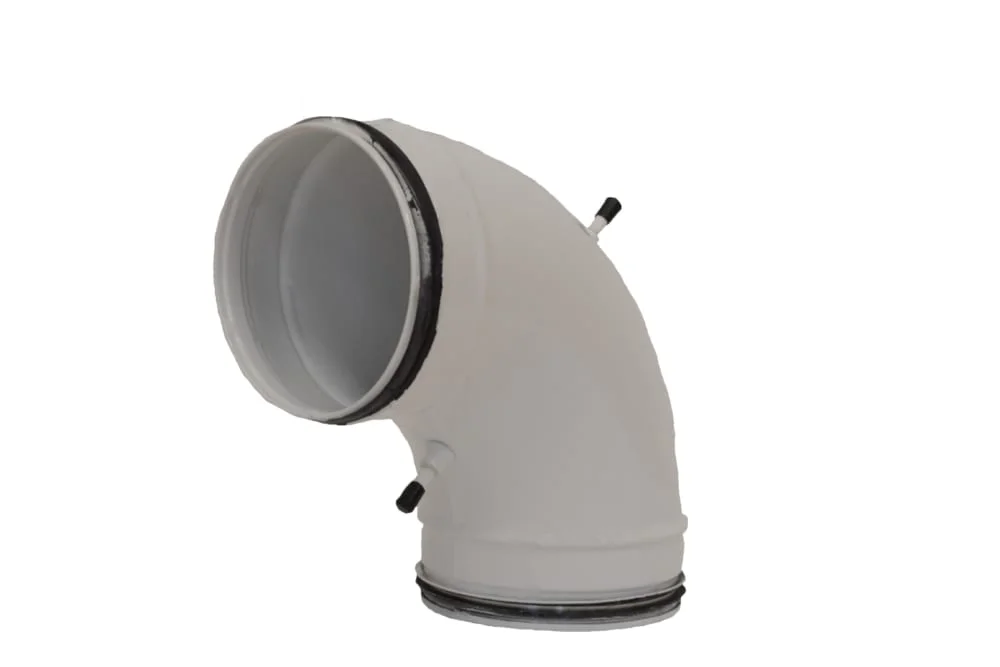

Measuring Bend Ø 100
| Item no. | Description |
|---|---|
| JMBUH100 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU100 | Unpainted with 30 mm measuring nozzles |
| JMBU10050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU100100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Measuring Bend Ø 125
| Item no. | Description |
|---|---|
| JMBUH125 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU125 | Unpainted with 30 mm measuring nozzles |
| JMBU12550 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU125100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Measuring Bend Ø 160
| Item no. | Description |
|---|---|
| JMBUH160 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU160 | Unpainted with 30 mm measuring nozzles |
| JMBU16050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU160100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Measuring Bend Ø 200
| Item no. | Description |
|---|---|
| JMBUH200 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU200 | Unpainted with 30 mm measuring nozzles |
| JMBU20050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU200100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |

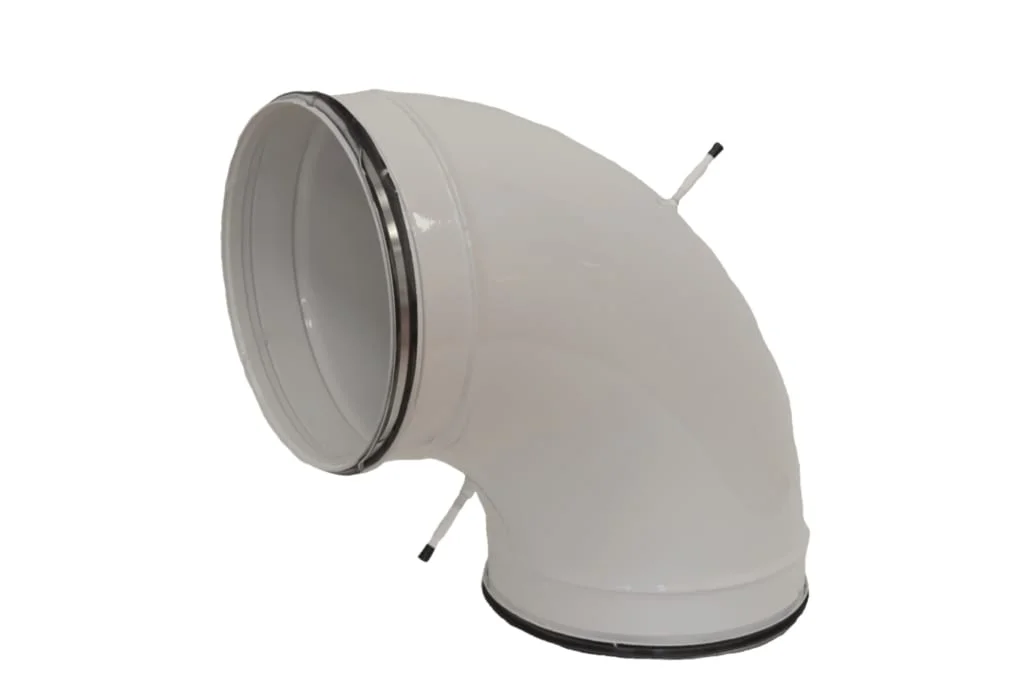

Measuring Bend Ø 250
| Item no. | Description |
|---|---|
| JMBUH250 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU250 | Unpainted with 30 mm measuring nozzles |
| JMBU25050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU250100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |

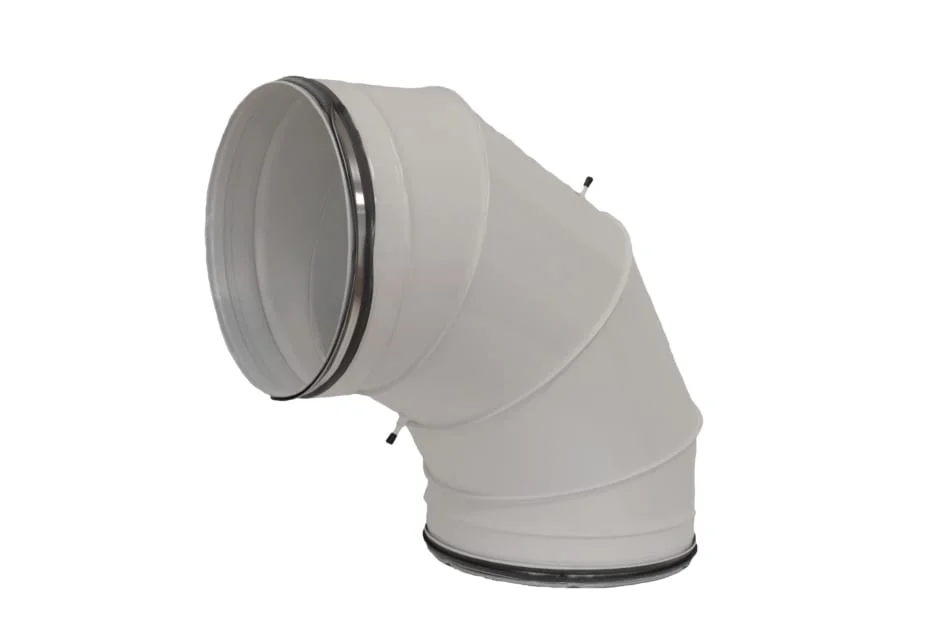

Measuring Bend Ø 315
| Item no. | Description |
|---|---|
| JMBUH315 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU315 | Unpainted with 30 mm measuring nozzles |
| JMBU31550 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU315100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Measuring Bend Ø 400
| Item no. | Description |
|---|---|
| JMBUH400 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU400 | Unpainted with 30 mm measuring nozzles |
| JMBU40050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU400100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Measuring Bend Ø 500
| Item no. | Description |
|---|---|
| JMBUH500 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU500 | Unpainted with 30 mm measuring nozzles |
| JMBU50050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU500100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Measuring Bend Ø 630
| Item no. | Description |
|---|---|
| JMBUH630 | White RAL 9016 with 30 mm measuring nozzles |
| JMBU630 | Unpainted with 30 mm measuring nozzles |
| JMBU63050 | Unpainted with measuring nozzles suitable for egnet for 50 mm insulation |
| JMBU630100 | Unpainted with measuring nozzles suitable for egnet for 100 mm insulation |
Features and Benefits
- Suitable for measuring the regulation or for continuous flow measurements
- Provides fixed measuring points in the ventilation system
- Suitable for all types of ventilation systems
- High precision for measuring airflow
- Does not increase pressure drop, air resistance or operating costs
- Provides an easier workflow for technicians
- An energy-efficient and low cost alternative to other methods of measurement
Dimension
 | |||||||||
| Ød [mm] | Ø100 | Ø125 | Ø160 | Ø200 | Ø250 | Ø315 | Ø400 | Ø500 | Ø630 |
| L [mm] | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 |
| Measuring nozzles[mm] | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 | 30 / 65 / 115 |
Measurement:
The design of the measuring bend makes it possible to measure the pressure difference between two points, located on a line through the center of curvature, which can be read on a manometer. One measuring nozzles is located on the inner radius of the bend and the other is located on the out radius of the bend.
The two measuring nozzles are protected with plugs, which is easy to disassemble when measuring. The air flow through the bend is determined by formal and graf. The arrow on the bend indicates mounting in relation to the flow direction.
Air flow Diagram

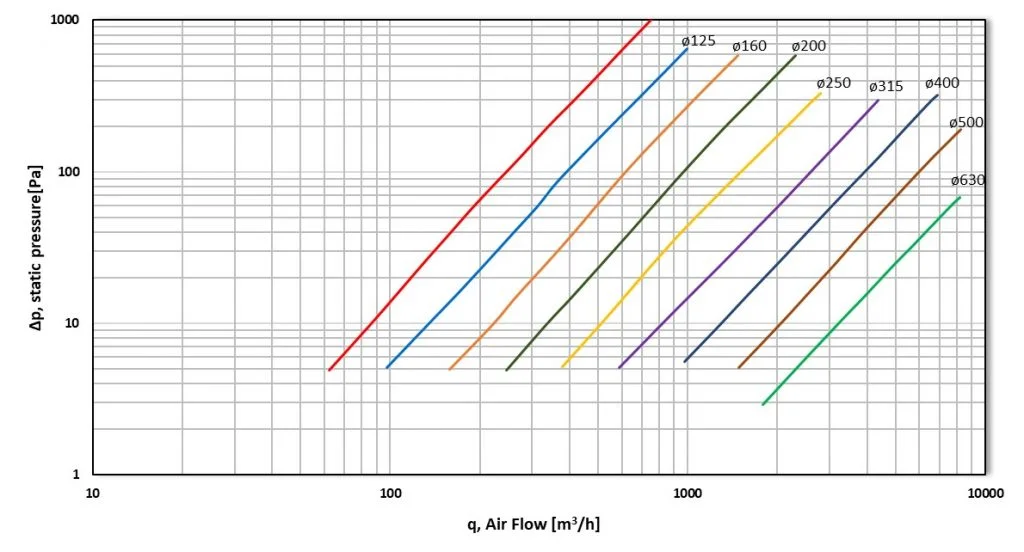

Airflow Diagram for measuring bend in standard dimension Ø100 to Ø630 – Note that the axes are logarithmic.

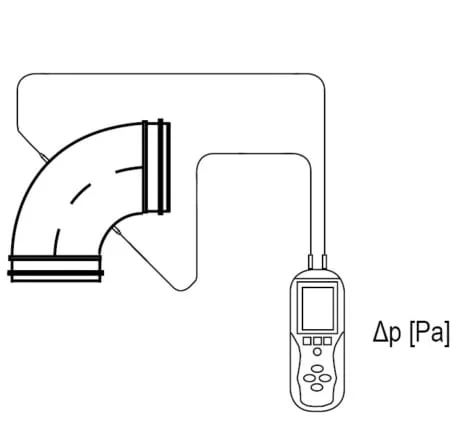

Illustration of measurement
